SLC – System

SLC – System for control and monitoring of fire and smoke extraction dampers

PRODUCT RANGE

SLC-SYSTEM

SLC-System

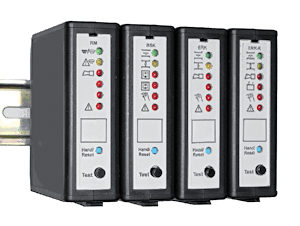

The SLC system comprises control and monitoring modules as well as specially equipped safety actuators for fire and smoke extraction dampers (BRK and ERK) and smoke extraction dampers with venting function (ERK-K). It was developed at that time to be able to realize more than just the control and monitoring of the limit switches for the motorized safety dampers mentioned. In the SLC system, the damper actuators are supplied with voltage by the respective module, the control commands are transmitted, their execution in the specified time and the correct functioning of the communication are monitored. All this is realized via a 2-wire line between the module and the actuator. An extra power supply for the drives is not required. Furthermore, scenarios for the case of fire can be realized. The integration into the building control system is realized via potential-free control and signal contacts or, if an interface is available on the module, via MODBus. The modules report the status of the associated actuator via LED displays. In case of malfunctions, a message is sent to the building control system. A test run of the drives can be triggered directly at the module or via remote control from the control center.

Datasheets

Classic JSLC modules

JSLC-B

for 1 piece SLC – fire damper actuator BSK

JSLC-R

for 1 piece SLC – smoke extraction damper actuator ERK

JSLC-K

for 1 piece SLC – smoke extraction damper actuator with venting function ERK-K

JSLC-RM

for 1 piece smoke detector RMS.2-SLC

JSLC modules with MODBus interface

JSLC-B MOD

with MODBus RTU protocol RS485 for 1 piece SLC – fire damper actuator BSK

JSLC-R MOD

with MODBus RTU protocol RS485 for 1 piece SLC – smoke extraction damper actuator ERK

JSLC-K MOD

with MODBus RTU protocol RS485 for 1 piece SLC – smoke extraction damper actuator with venting function ERK-K

JSLC-RM MOD

with MODBus RTU protocol RS485 for 1 piece smoke detector RMS.2-SLC
Let us advise you!

Try us!

If you are already our customer – please let us know how we can improve!

Use our free hotline:

SLC – System

SLC – System zur Ansteuerung und Überwachung von Brandschutz- und Entrauchungsklappen
Sortimentsbereich

SLC-SYSTEM

SLC-System

Das SLC-System umfasst Steuer- und Überwachungsmodule sowie speziell ausgerüstete Sicherheitsantriebe für Brandschutz- und Entrauchungsklappen (BRK und ERK) sowie Entrauchungsklappen mit Entlüftungsfunktion (ERK-K). Es wurde seinerzeit entwickelt, um bei den genannten motorisierten Sicherheitsklappen mehr als nur die Ansteuerung und die Überwachung der Endlagenschalter realisieren zu können. Im SLC-System werden die Klappenantriebe durch das jeweilige Modul mit Spannung versorgt, es werden die Ansteuerbefehle übermittelt, deren Ausführung in der vorgegebenen Zeit und die korrekte Funktion der Kommunikation überwacht. Das wird alles über eine 2-Draht-Leitung zwischen Modul und Antrieb realisiert. Eine extra Spannungsversorgung für die Antriebe wird nicht benötigt. Darüber hinaus sind Szenarien für den Brandfall realisierbar. Die Einbindung in die Gebäudeleittechnik erfolgt über potentailfreie Steuer- und Meldekontakte oder, bei vorhandener Schnittstelle am Modul, über MODBus. Die Module melden den Zustand des zugehörigen Antriebs per LED-Anzeigen. Bei Störungen erfolgt eine Meldung an die Gebäudeleittechnik. Direkt am Modul oder per Fernsteuerung aus der Leitzentrale kann ein Testlauf der Antriebe ausgelöst werden.

Datenblatt

klassische JSLC-Module

JSLC-B

für 1 Stück SLC – Brandschutz-klappenantrieb BSK

JSLC-R

für 1 Stück SLC – Ent-rauchungsklappenantrieb ERK

JSLC-K

für 1 Stück SLC – Ent-rauchungsklappenantrieb mit Entlüftungsfunktion ERK-K

JSLC-RM

für 1 Stück Rauchmelder RMS.2-SLC

JSLC-Module mit MODBus-Schnittstelle

JSLC-B MOD

mit MODBus RTU Protokoll RS485 für 1 Stück SLC – Brandschutz-klappenantrieb BSK

JSLC-R MOD

mit MODBus RTU Protokoll RS485 für 1 Stück SLC – Ent-rauchungsklappenantrieb ERK

JSLC-K MOD

mit MODBus RTU Protokoll RS485 für 1 Stück SLC – Ent-rauchungsklappenantrieb mit Entlüftungsfunktion ERK-K

JSLC-RM MOD

mit MODBus RTU Protokoll RS485 für 1 Stück Rauchmelder RMS.2-SLC
